Staedtler Mars Professional Combo Circles Template 977 510
Staedtler Mars Professional Combo Circles Template 977 510
Student's name
First and last name, and class if you know it. This goes on the pack label.
Pickup available at Mega DC – Tweed Heads South
Usually ready in 24 hours
Combo Circle Template, 48 Circles From 2 mm To 50 mm

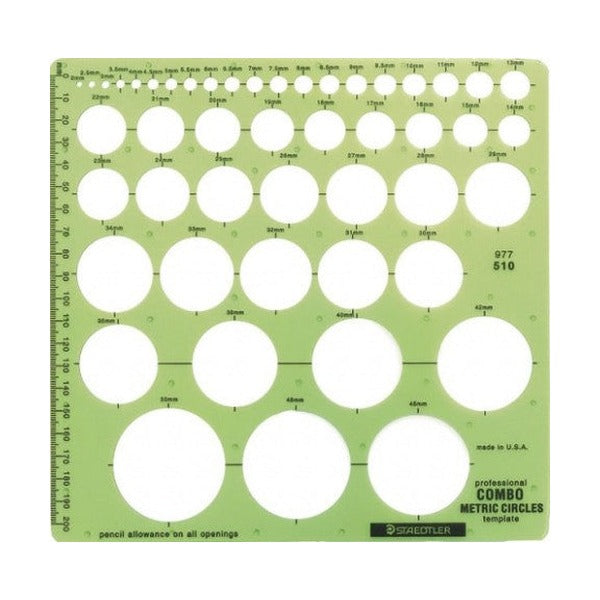

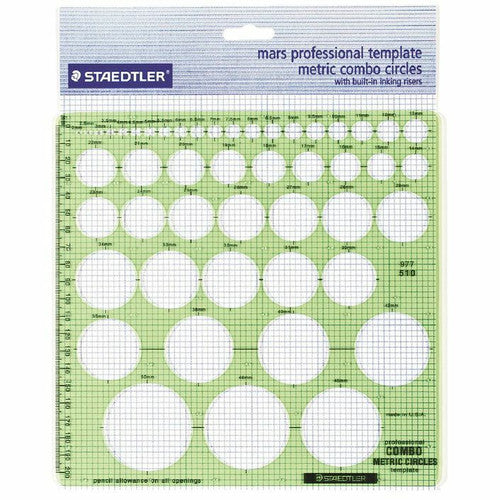

Staedtler 977 510 is the Mars professional combo circles template, which puts 48 circles from 2 mm to 50 mm on one green transparent sheet.
It is the broadest of the metric circle templates in the range. From 2 mm to 10 mm the sizes rise by 0.5 mm, from 11 mm to 35 mm by 1 mm, and from 38 mm to 50 mm in varying increments. One sheet therefore covers fine symbols and bigger outlines without switching templates mid-drawing.
Staedtler cut it from dimensionally stable 0.8 mm green transparent plastic, give it a glare-reducing matte side and inking risers, and print the cut-out sizes, centring lines and a 200 mm scale in clear black ink. A 0.5 mm pencil lead is the size Staedtler give for these openings.
