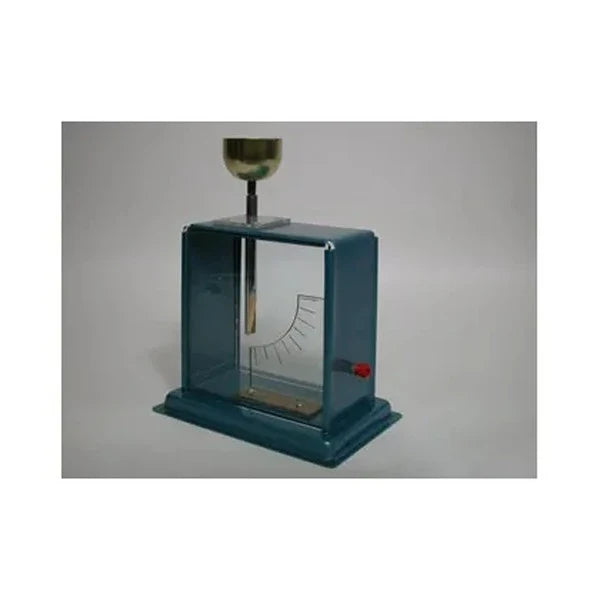

The classic electroscope, with a scale so it measures rather than just moves
Aluminium case, 4mm socket, ground terminal, Teflon-insulated gold leaf support, and an internal scale on the rear glass. $70.00.
An electroscope answers one question visibly: is this object charged, and how much. Bring a charged rod near the top plate and the gold leaf lifts; the more charge, the further it lifts. Students see a quantity, not just an effect.
The scale is what separates this from a cheap one. A transparent scale on the rear glass wall, marked from 0 to 90 in steps of 10, lets a class record deflection rather than describe it. That turns a demonstration into an experiment with results you can plot.
Teflon insulation on the leaf support. That is the part that decides whether an electroscope holds a charge for a minute or for five seconds. Teflon is one of the best insulators available for the job, and it is why this one still works on a humid day when a cheaper instrument has already leaked away.
Two interchangeable electrodes: a disc top plate for induction work with a charged rod, and a metal hook for hanging or connecting. There is a 4mm socket and a ground terminal, so it wires into a circuit or an earth line properly.
One note: the supplier's scale is printed "0 to 90 C x 10 C" and does not say what the unit is. Almost certainly degrees of leaf deflection. We have asked them; do not build an assessment around the unit until we confirm it.
