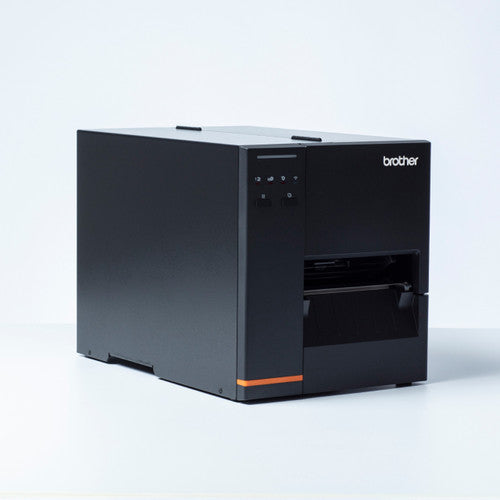

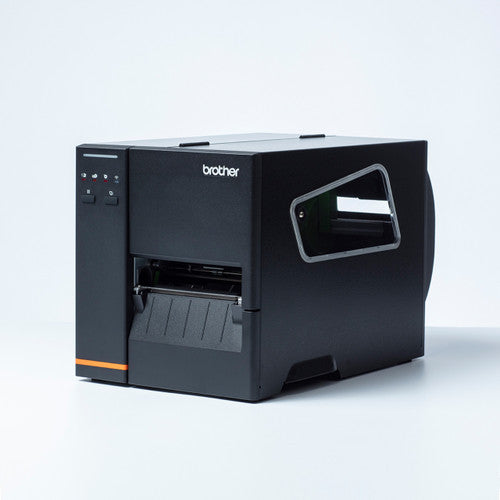

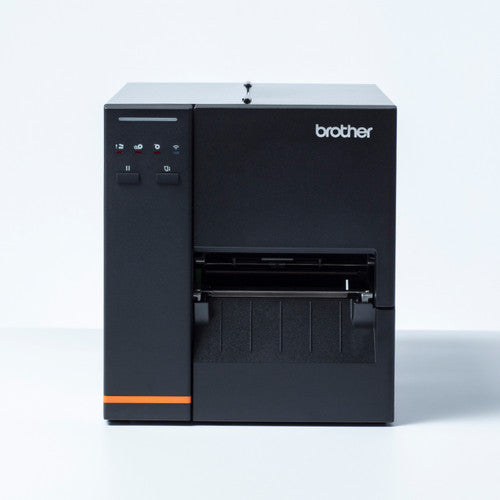

Brother TJ-4020TNW Titan Industrial Printer with Wi-Fi
Brother TJ-4020TNW Titan Industrial Printer with Wi-Fi
Student's name
First and last name, and class if you know it. This goes on the pack label.
Pickup available at Mega DC – Tweed Heads South
Usually ready in 24 hours
Wireless Industrial Printing On The Titan Platform
The Brother TJ-4020TNW is the TJ-4020TN platform supplied with Brother's Wi-Fi module, part PA-WI-002 included. It is a 203dpi Titan industrial printer running up to 254 mm per second.
It runs both thermal transfer and direct thermal, taking ribbon 40mm to 110mm wide up to 450m long in wax, resin or a wax and resin mix, wound inside or outside. Roll width runs 20mm to 120mm, narrowing to 20mm to 114mm in cutter mode. Maximum print length is 25,400mm. The control panel is 4 icon indicators and a status LED.
Emulation is FBPL-EZD, compatible with FBPL II, EPL II, ZPL II and DPL, so it can usually take label data from a system already driving another brand. The module ships with the printer rather than being bought separately, and the wired interfaces stay available alongside it: Ethernet, RS-232C serial and USB.
Brother publishes no separate specification for this variant at all. Every figure above is the TJ-4020TN platform's, and the hardware it ships with is quoted from Brother's own accessory listing. Ask us for ribbon and media to suit. Our label supplies and the wider labelling machine range are linked here.
Connectivity on this model
- USB 2.0 Full Speed Type B
- RS-232C serial
- 10/100 wired Ethernet
- Wi-Fi, from the fitted PA-WI-002 module
