Brother HSe-211E Heat Shrink Tube Cassette 5.2mm x 1.5m Black on White

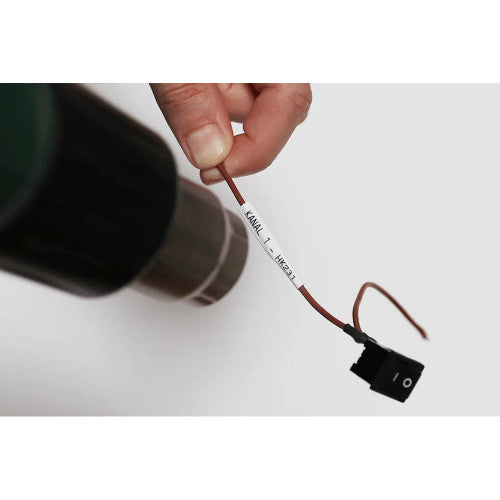

Printed heat shrink tube for permanent cable and wire identification, sized to fit conductors from 0.8mm to 3.1mm in diameter. Unlike an adhesive label, a shrunk tube cannot peel, curl or slide off a cable, which is why it is the standard for switchboards, comms racks and machinery looms that get inspected years after installation.

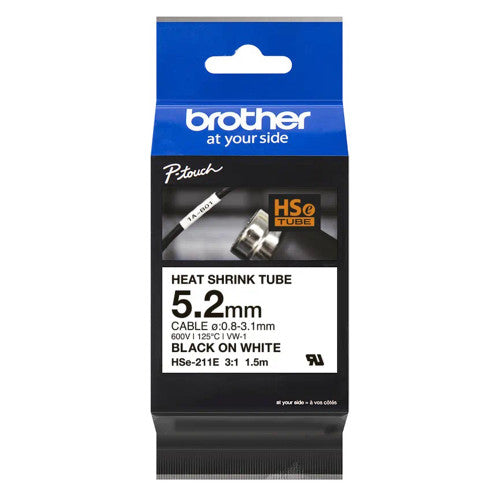

Get the size right by measuring the cable, not the tube. This cassette is 5.2mm across when flat, and it shrinks at a 3:1 ratio onto anything between 0.8mm and 3.1mm in diameter. A cable thinner than 0.8mm will not be gripped once shrunk, and one thicker than 3.1mm will not let the tube slide on. Brother rates the tube to UL 224, 600 volts and 125 degrees Celsius.
The cassette holds 1.5m of tube and drops into any Brother P-touch tool that accepts HSe heat shrink cassettes. In our range that is six machines: the PT-E310BTVP, PT-E560BTVP, PT-P700, PT-P750W, PT-P900W and PT-P950NW. The PT-D210, PT-P300BT, PT-D460BT, PT-D610BT, PT-P710BT, PT-P910BT and PT-E920BT do not take heat shrink tube at all.
The same tube is available as black on yellow (HSe-611E) if you colour-code by circuit. Browse the full Brother tape and cassette range, the wider labelling consumables range, or the Brother P-Touch label makers that run them.
